Van Guard 3 UltiBar+ Roof Bars with Roller and 3m Pipe Carrier Bundle for Ford Transit Custom 2013-2023 | L1, L2 | H1 | Twin Rear Doors | VG304-3#VGR-09#VG400-3

This product is a bundle of multiple products. Please review the product description to understand what is included in this bundle. If you are unsure of what products are included in this bundle please contact us.
RRP: £613.44 incl VAT
£432.99 incl VAT (£360.82 excl VAT)
Manufacturer: Van Guard
Manufacturer part number: VG304-3#VGR-09#VG400-3

This product is custom made for the following vehicle and vehicle dimensions:

Free Shipping to England, Wales and Scotland (excluding Highlands)

Products specifications

Bars: Vehicle Length L1, L2
Bars: Vehicle Height H1
Bars: Doors ALL
Bars: Bar Length (mm) 1400
Bars: Shipping Box 1 Dimensions 1609 x 157 x 73
Bars: Colour Silver
Bars: Fitting Time 30
Bars: Max Load 80 (per bar)
Bars: Bar Length 1400
Bars: Bar Width 60
Bars: Bar Depth 30
Bars: T-Track Size 21 x 8
Bars: Warranty 12
Bars: Roof Bar Quantity 3
Bars: Material Aluminium
Bars: General Product Note 1 Bar length changed from 1570mm 13/06/2023
Bars: General Product Note 2 bar length changed from 1570mm 13/06/2023
Bars: Number of Parcels 1
Roller: Vehicle Length L1, L2
Roller: Vehicle Height H1
Roller: Doors Twin Rear Doors
Roller: Max Load 50
Roller: Bar Length (mm) 1142
Roller: Bracket Height/Length (mm) 395
Roller: Fitting Time 15
Roller: Shipping Box 1 Dimensions 1420 x 60 x 60
Roller: Warranty 12
Roller: Rear Roller Length 1142
Roller: Rear Roller Bracket Length 395
Roller: Material Aluminium
Roller: Number of Parcels 1
Pipe Carrier: Vehicle Length All
Pipe Carrier: Vehicle Height ALL
Pipe Carrier: Doors ALL
Pipe Carrier: Crashed Tested Standard ECE Reg 17
Pipe Carrier: Shipping Box 1 Dimensions 3310 x 165 x 165
Pipe Carrier: Colour Silver
Pipe Carrier: Fitting Time 10
Pipe Carrier: Max Load 30
Pipe Carrier: Warranty 12
Pipe Carrier: Pipe Carrier External Size 124 x 90 x 3190
Pipe Carrier: Pipe Carrier Internal Size 112 x 75 x 3020
Pipe Carrier: Pipe Carrier Carry Capacity 36x15mm tubes
Pipe Carrier: Material Aluminium
Pipe Carrier: General Product Note 1 Compatible with roof bars up to 60mm in width and 40mm in depth.
Pipe Carrier: Number of Parcels 1
Vehicle Length L1, L2
Vehicle Height H1

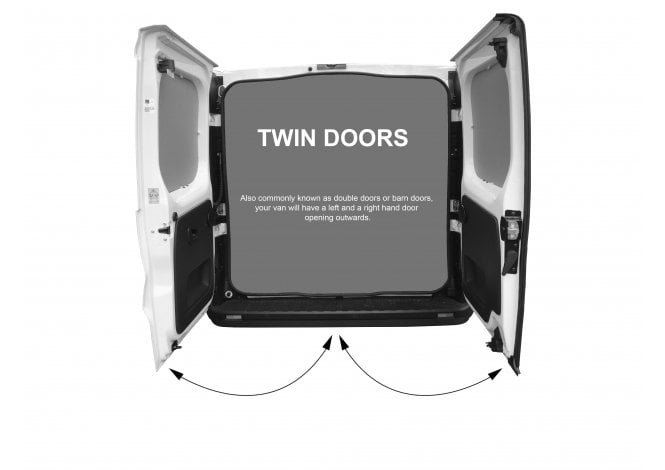

Doors Twin Rear Doors
Bars: Fitting Instructions IN8109.pdf
Roller: Fitting Instructions IN8053.pdf
Pipe Carrier: Fitting Instructions IN8057.pdf

If you aren't sure how these specifications apply to your vehicle please contact us via sales@vanroofrack.co.uk or our contact form

Product Description

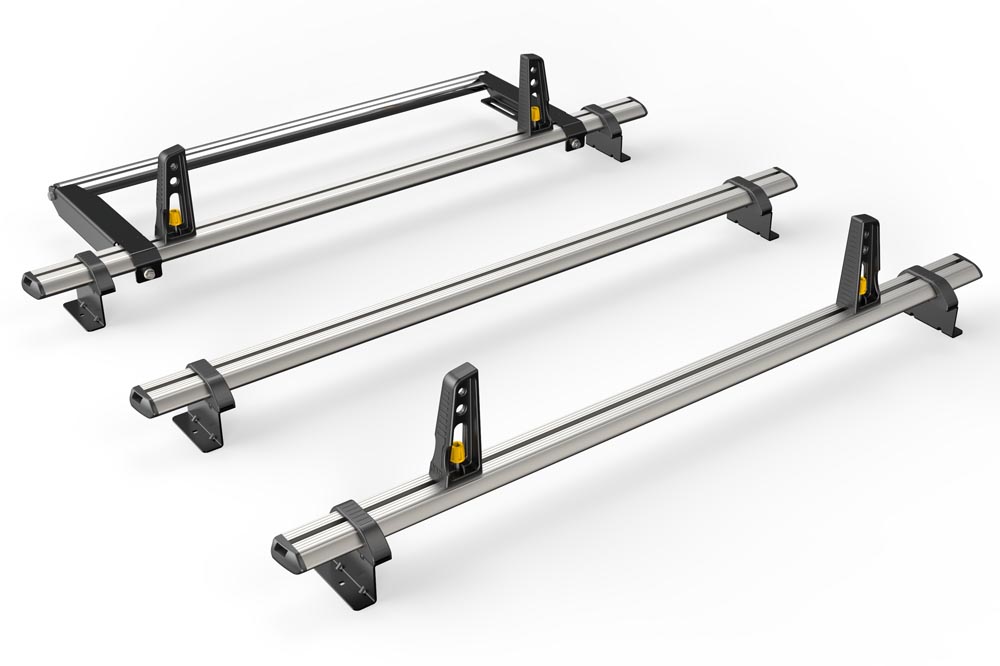

This product is a bundle of the following products

  • Van Guard ULTI Bar+ (Aluminium) - 3 Roof Bars for Ford Transit Custom 2013-2023 | L1, L2 | H1 | VG304-3
  • Van Guard Rear Roller System for ULTI Bars for Ford Transit Custom 2013-2023 | L1, L2 | H1 | Twin Rear Doors | VGR-09
  • Van Guard 3m Silver Standard Pipe Carrier - Unlined | VG400-3

The following product decscriptions are for the parts which make up the bundle

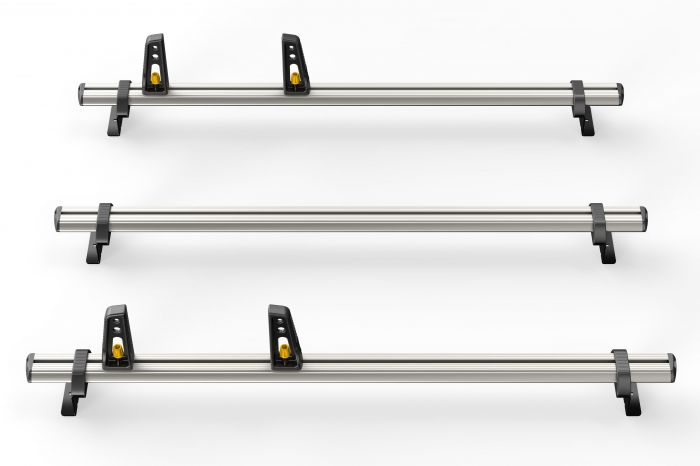

Van Guard ULTI Bar+ (Aluminium) - 3 Roof Bars for Ford Transit Custom 2013-2023 | L1, L2 | H1 | VG304-3

The Van Guard ULTIBar roof bars are constructed from aerodynamic, reinforced anodised aluminium extrusions bar,  with galvanised powder-coated steel brackets and stainless steel fixing.

Crash tested to 20g, built stronger, quieter, more fuel-efficient

Installation is very simple, as ULTIBars fit existing vehicle locating points, with all necessary fixings and instructions provided.

Approximate fitting time is 30 minutes.

KEY FEATURES

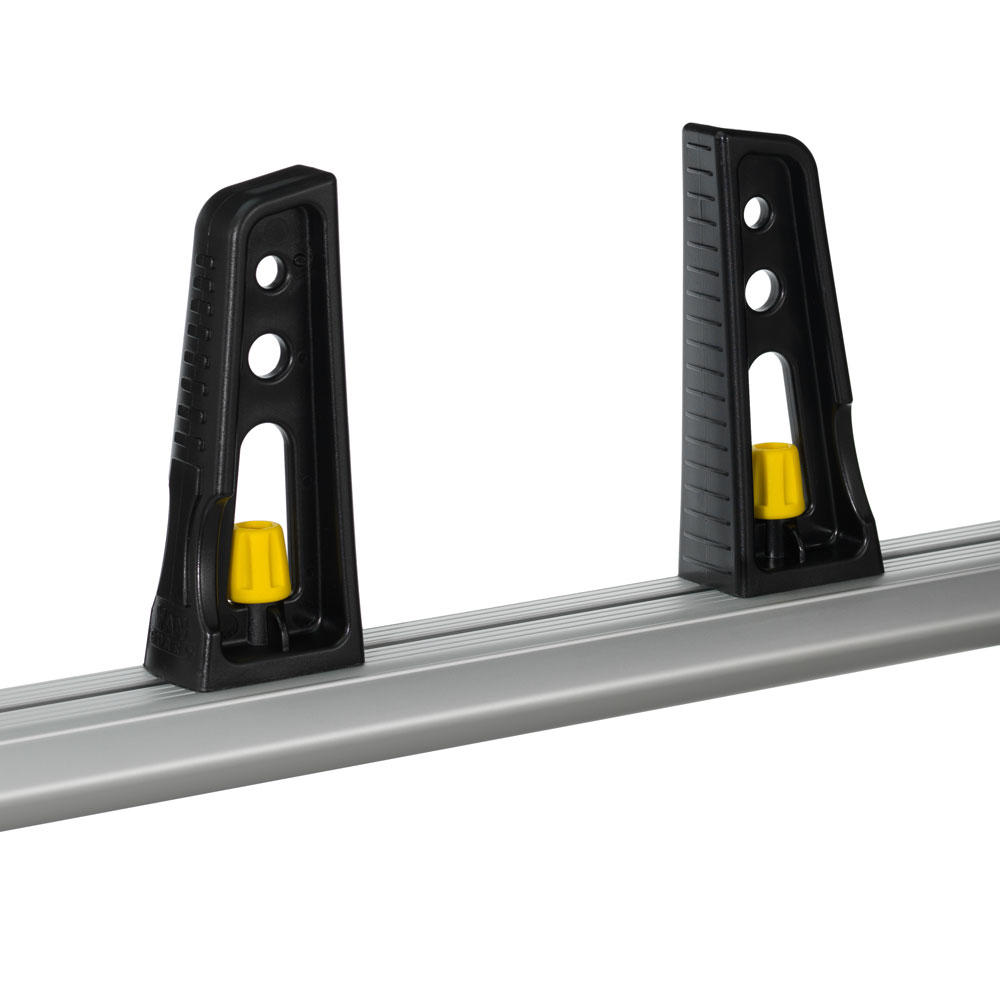

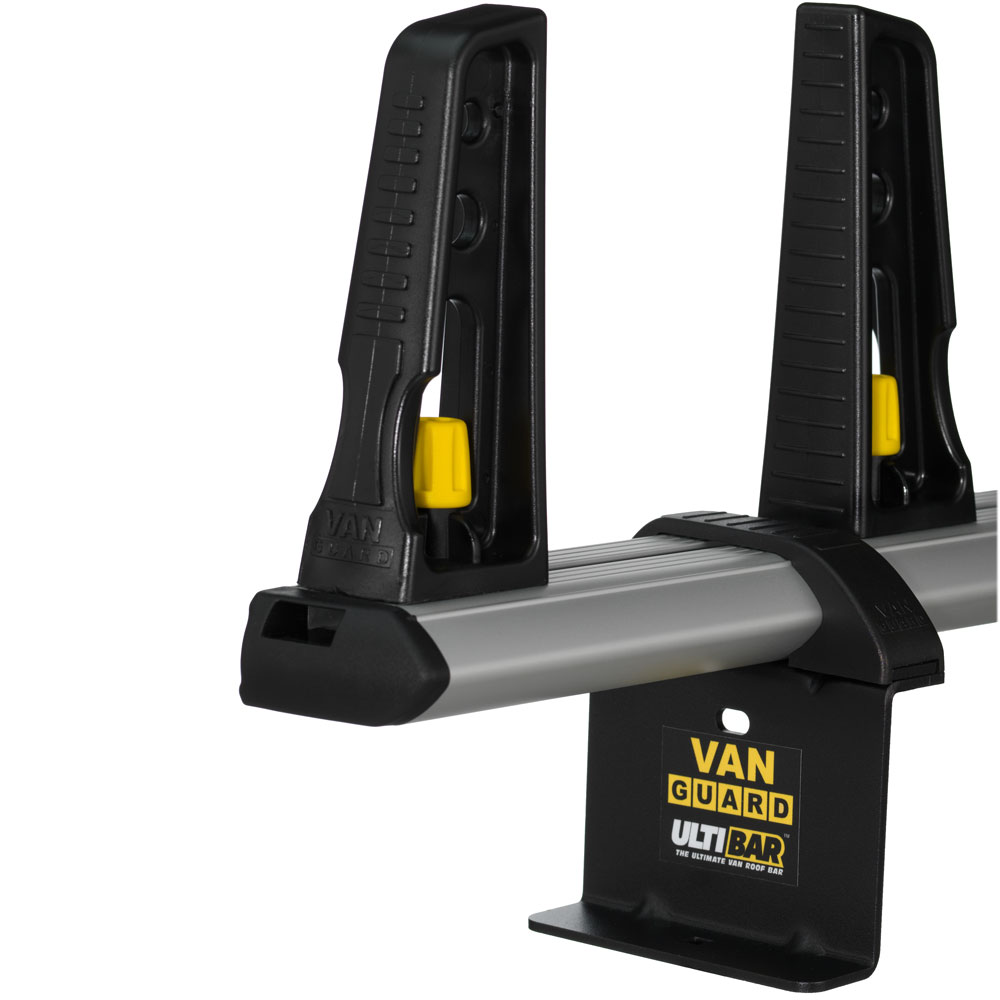

  • 4 x FREE load stops included.
  • Large carrying capacity, up to 80kg per bar. (In accordance with the vehicle manufacturer’s load-bearing capacity, refer to vehicle handbook).
  • 89% less wind drag than the nearest competitors, aiding fuel efficiency.
  • Up to 70% quieter than other leading bars.
  • Unique adaptable T slot system for accessories.
  • Designed and manufactured in Britain by VanGuard Accessories Ltd.

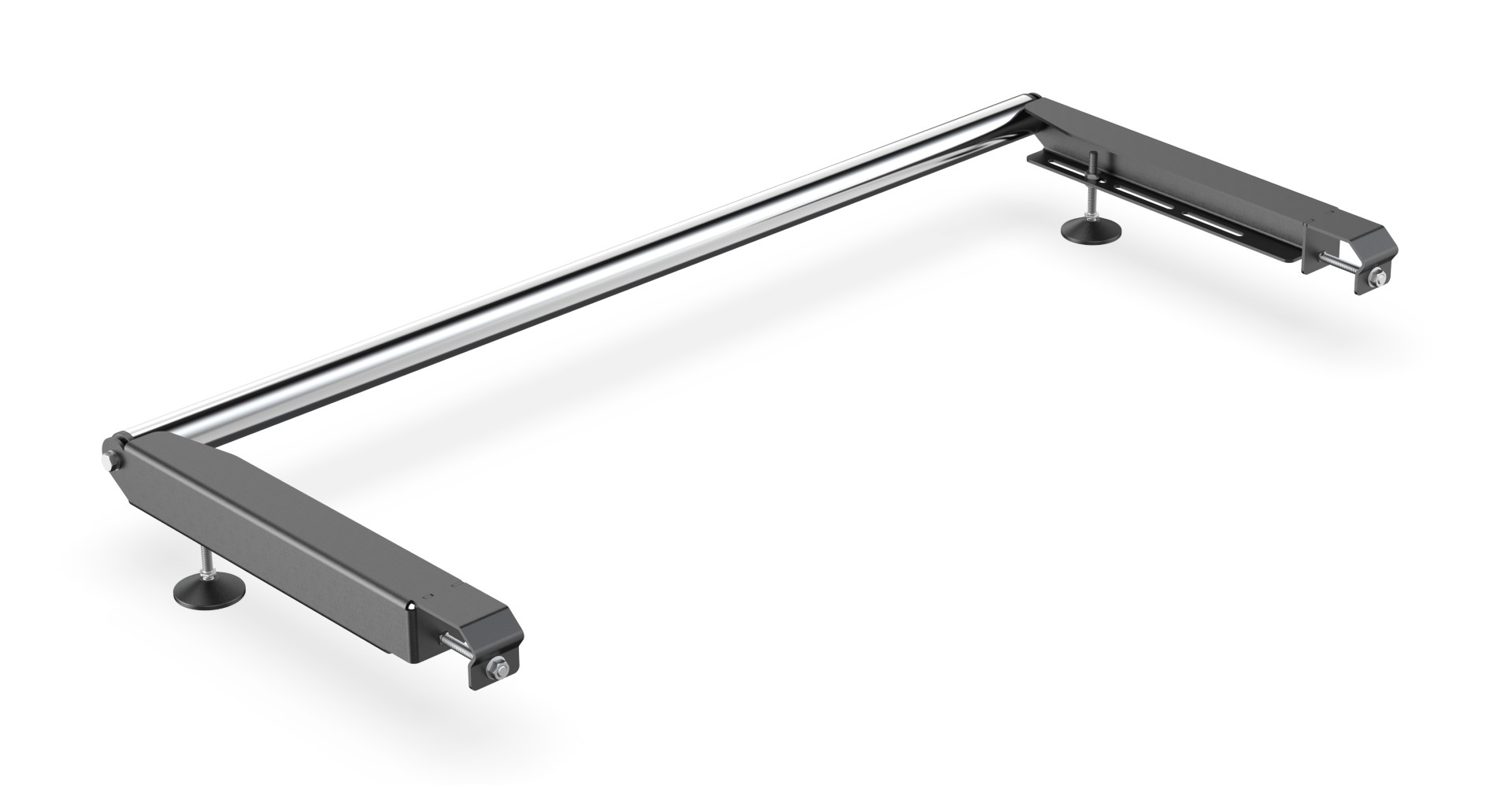

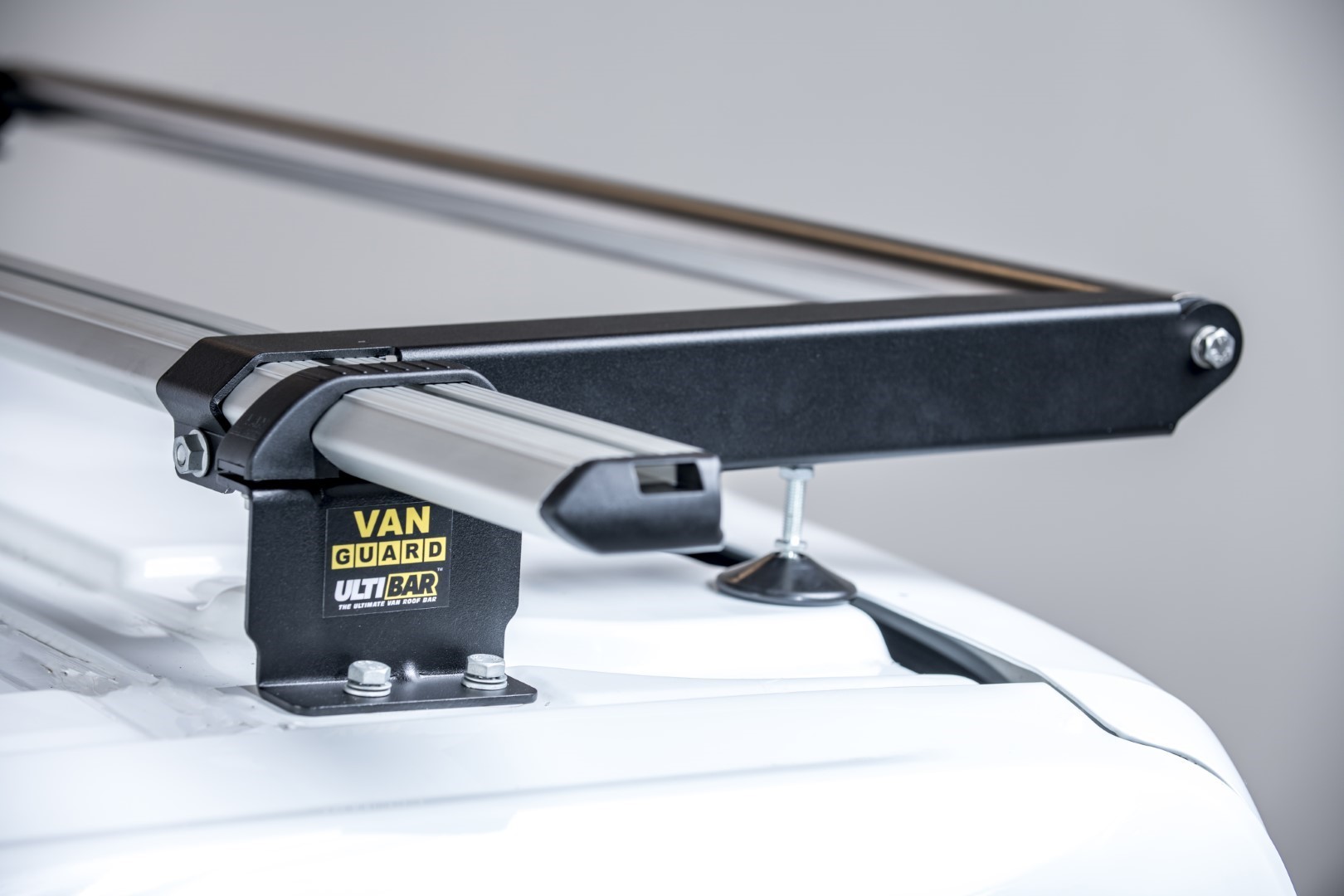

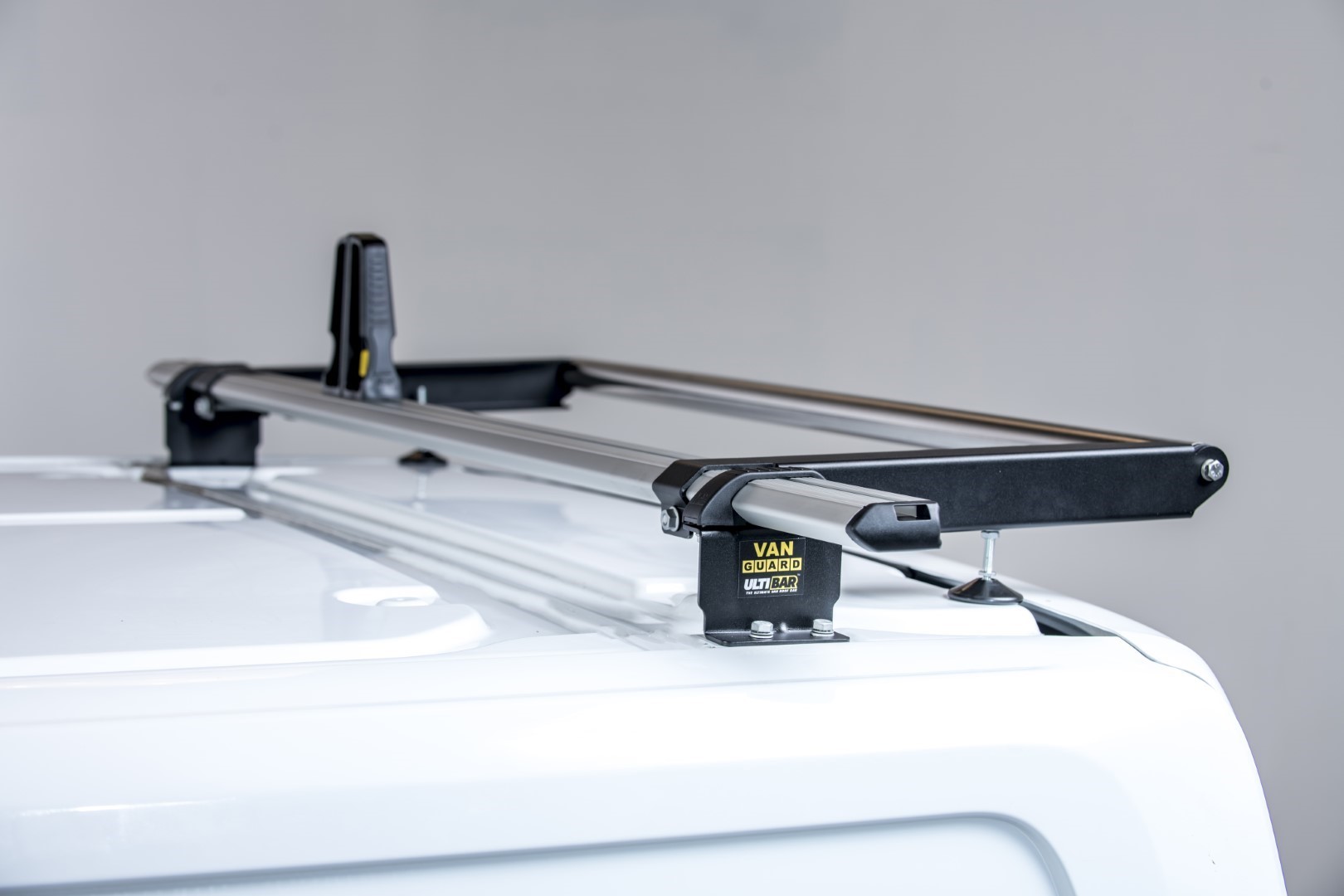

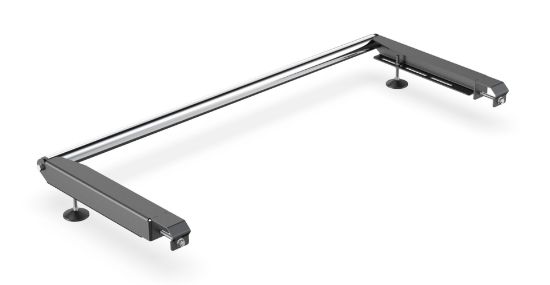

Van Guard Rear Roller System for ULTI Bars for Ford Transit Custom 2013-2023 | L1, L2 | H1 | Twin Rear Doors | VGR-09

Key Features

  • Constructed from heavy-duty stainless steel, fitted with nylon bearing to provide smooth running.
  • Makes loading ladders/ boards etc, very easy.
  • Protects the rear doors when loading ladders.
  • Manufactured in BRITAIN by Vanguard Accessories.

FITTING

  • Approximate fitting time 15-20 minutes.
  • All fittings & full fitting details are provided.
  • No drilling required.
  • Maximum load is in accordance with the vehicle manufacturer’s load-bearing capacity (refer to vehicle handbook).

Periodically check all fixings.

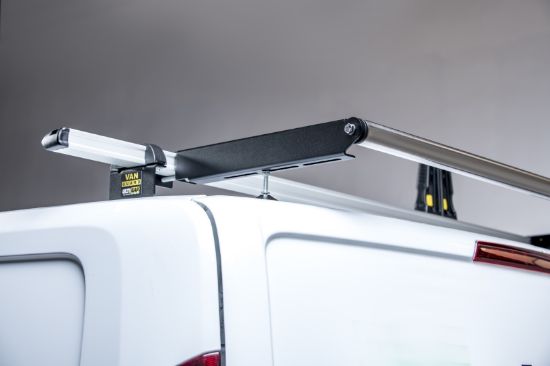

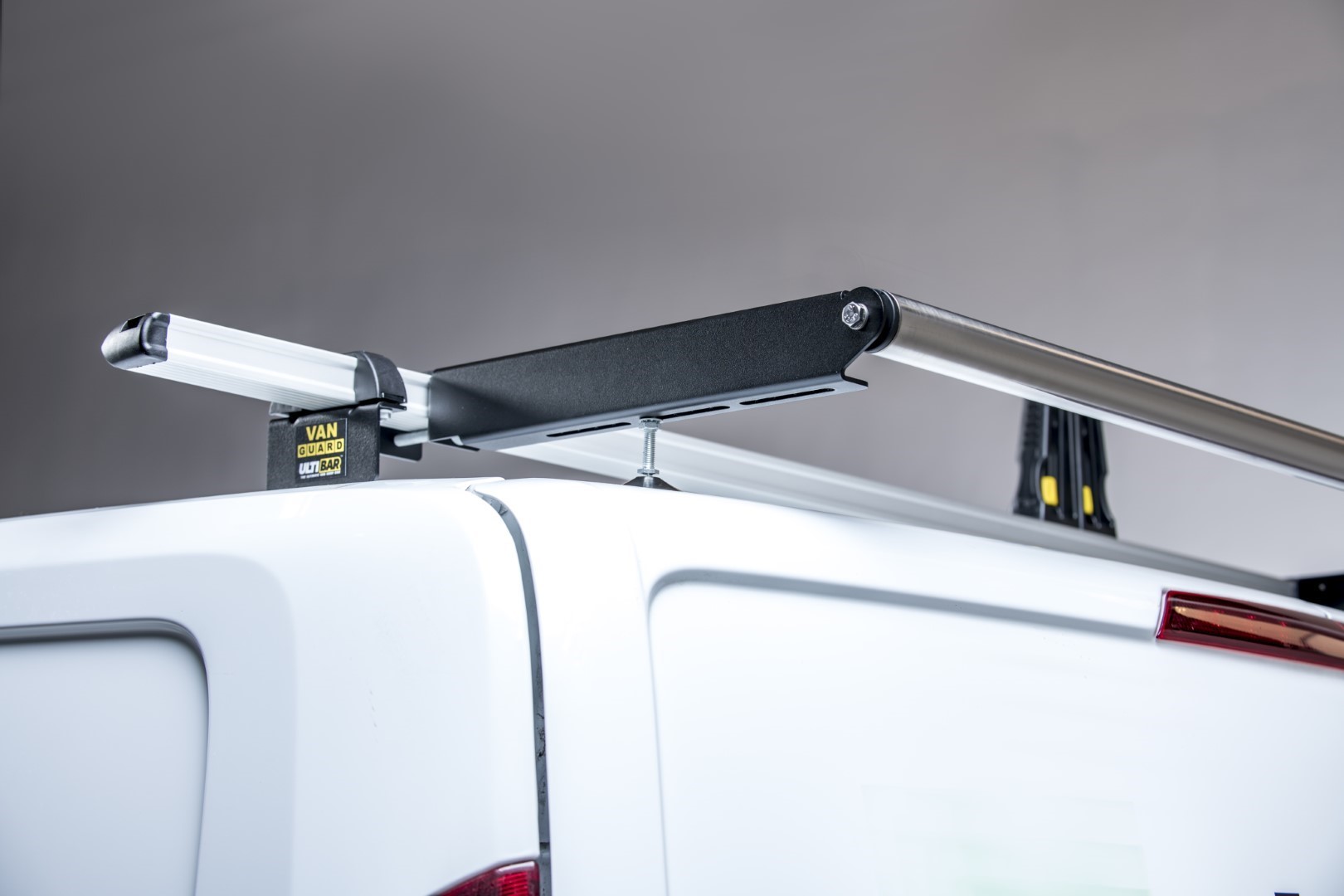

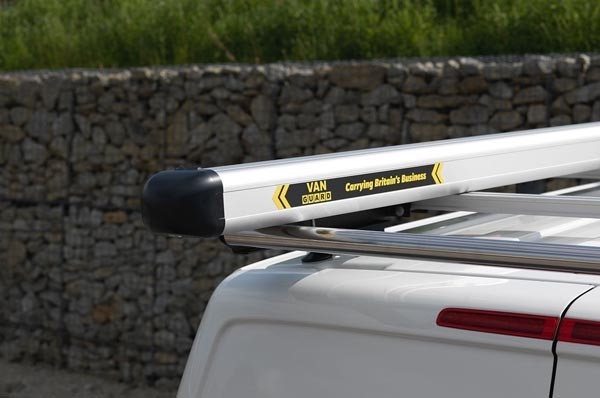

*Image for illustration purposes only, the picture shows roller attached to existing ULTI roof bar.

Images are for illustrative purposes only

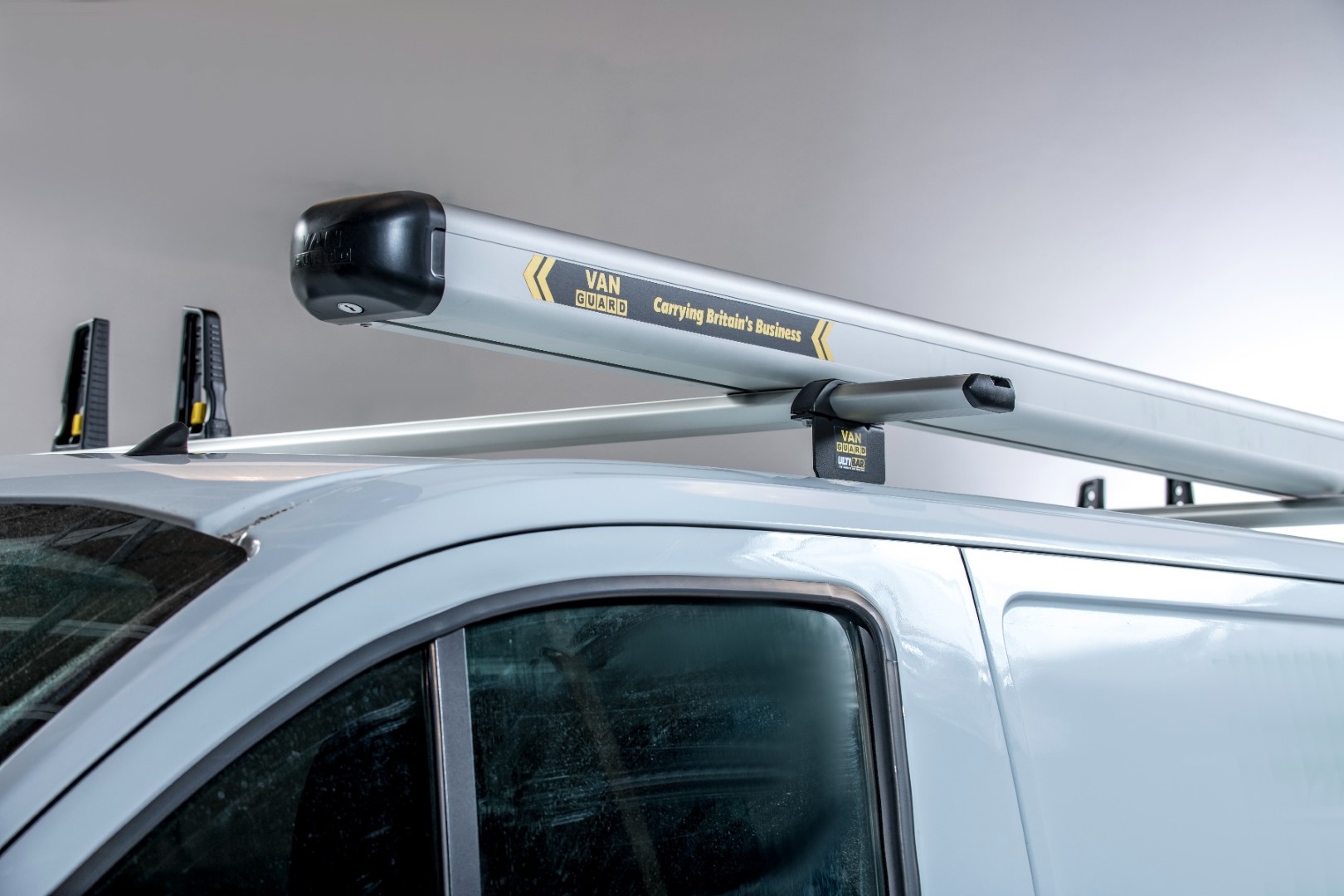

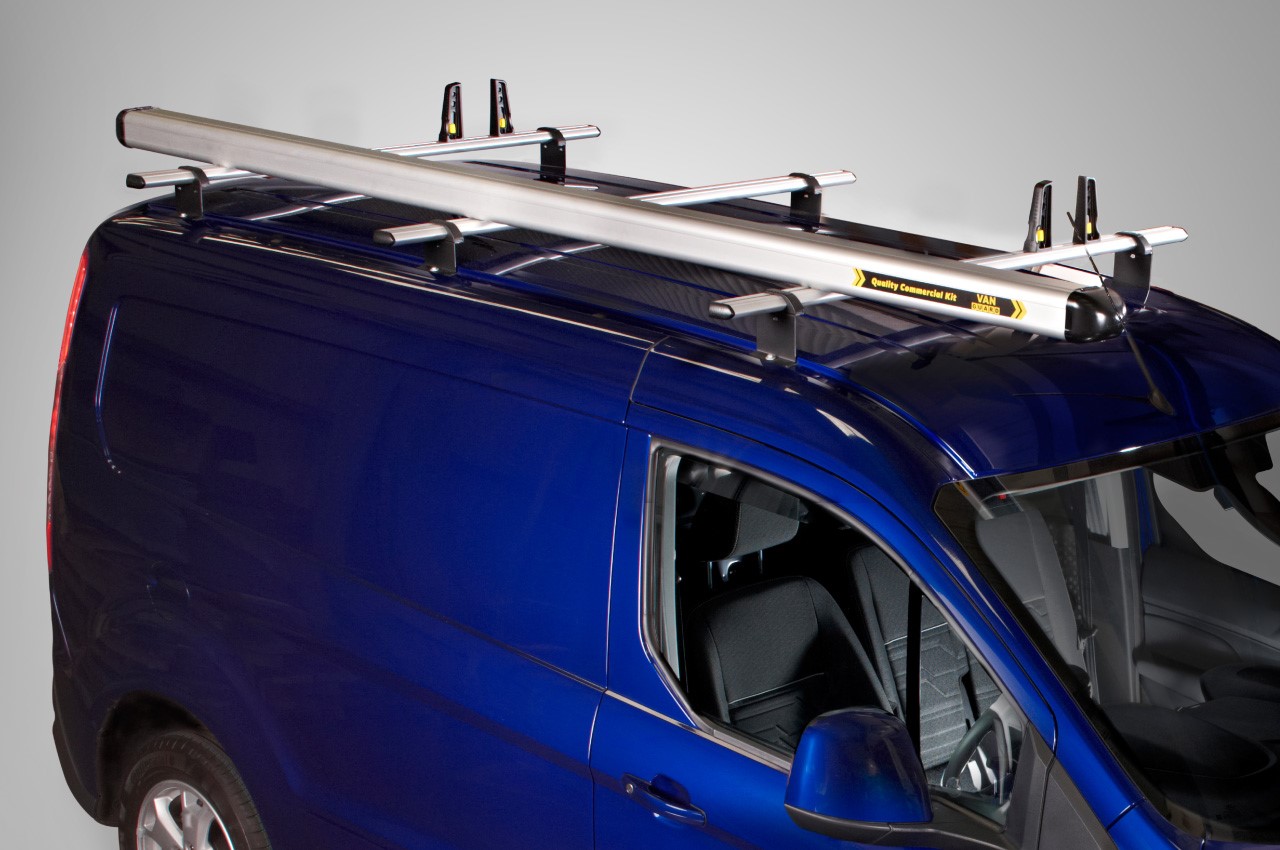

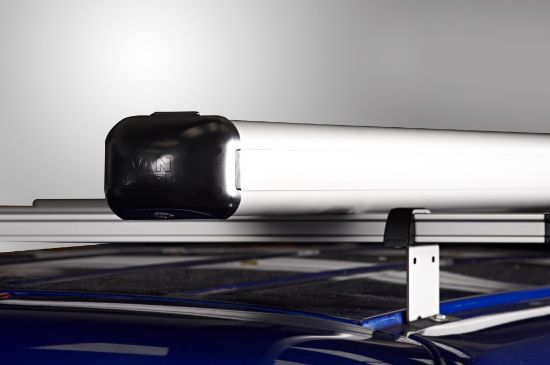

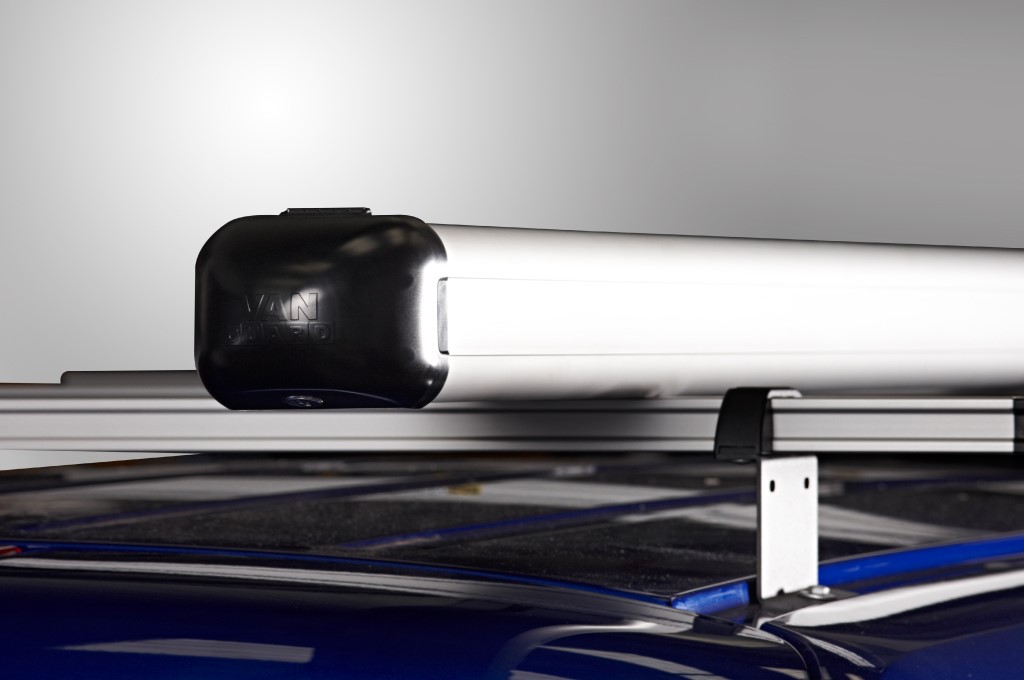

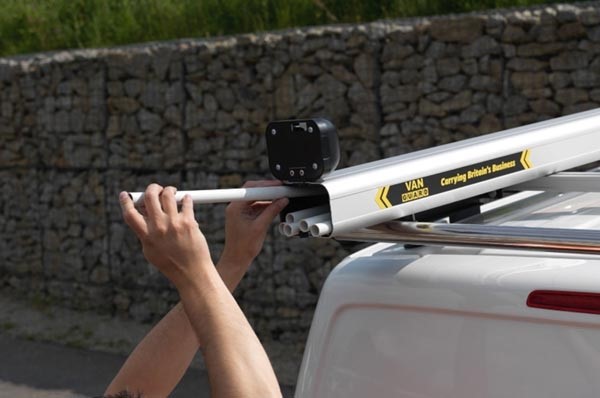

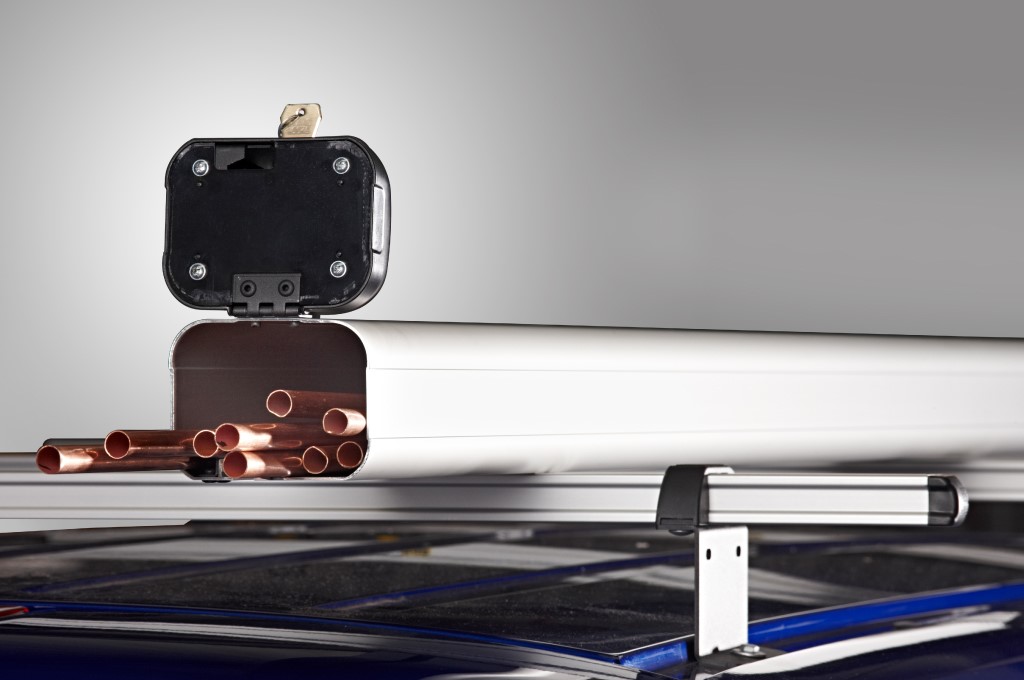

Van Guard 3m Silver Standard Pipe Carrier - Unlined | VG400-3
